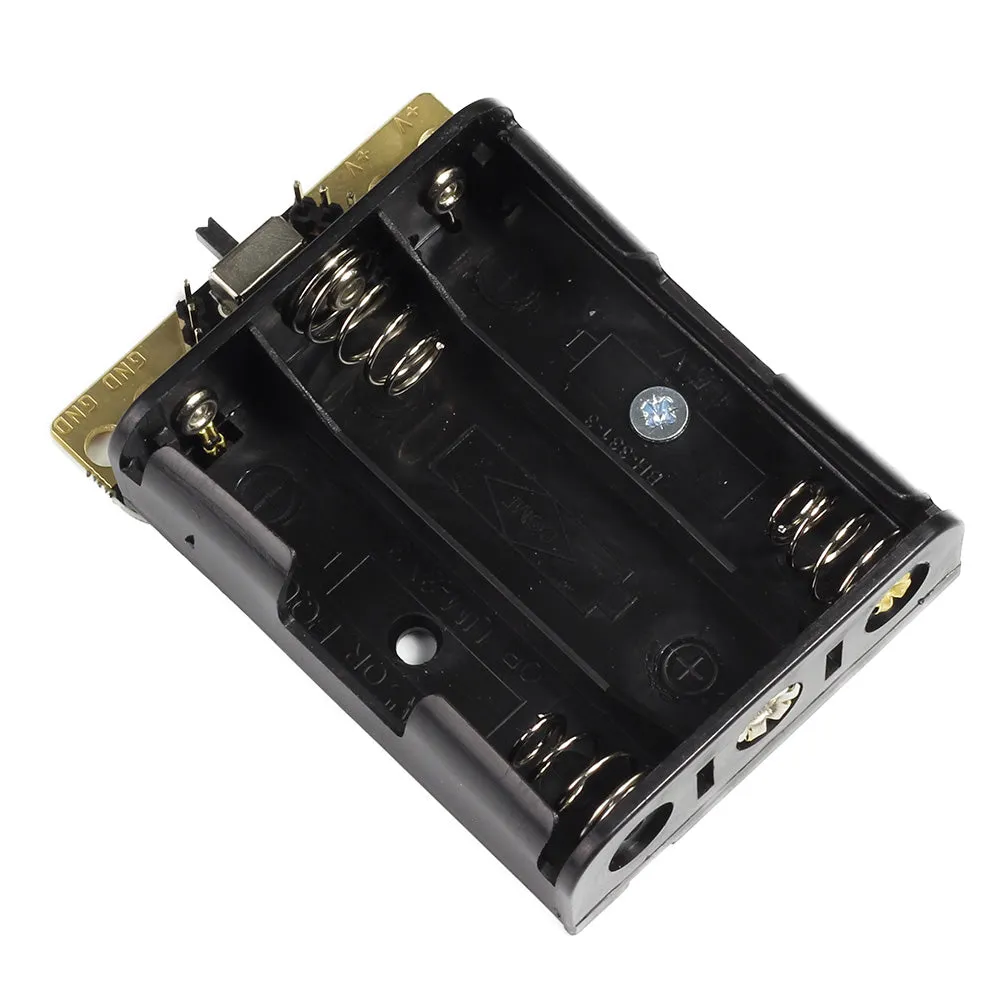

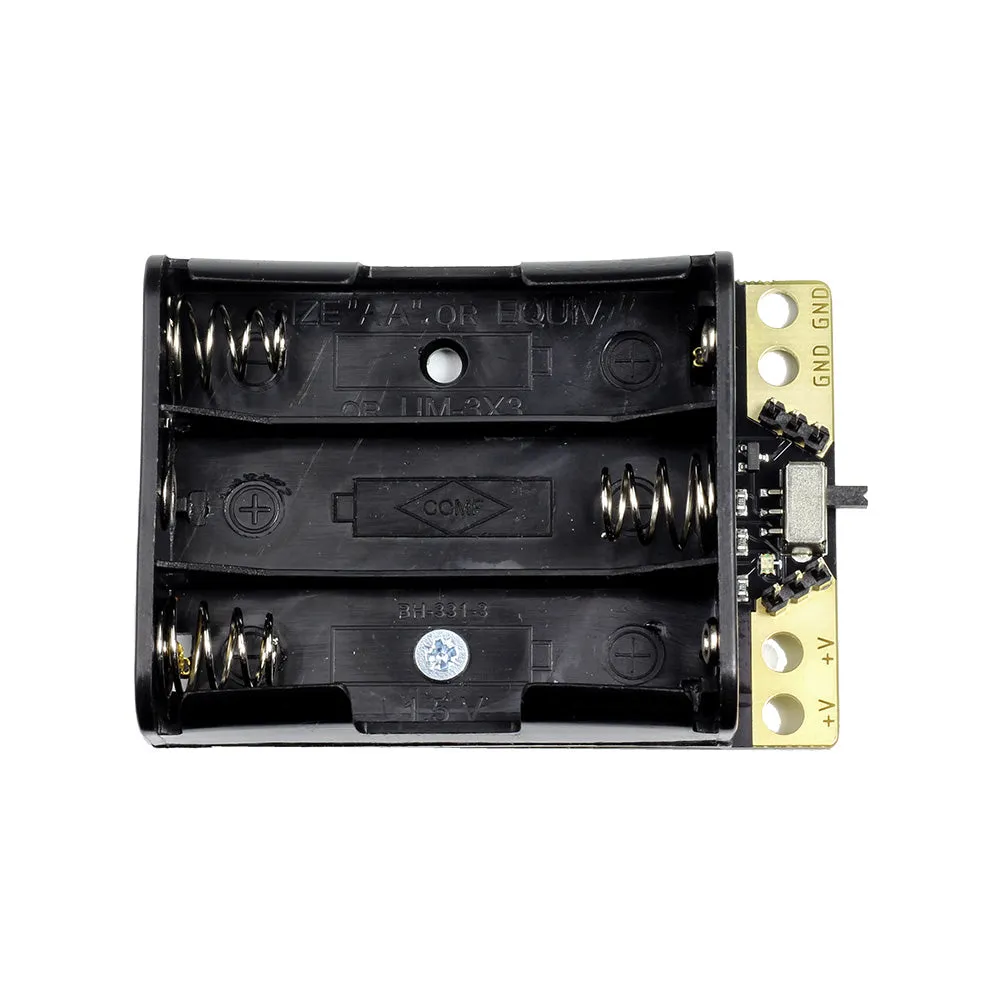

The Kitronik 3 x AA Protected Battery pack has been designed to provide 4.5V from 3 x AA batteries. It features an inbuilt self-resetting fuse that provides protection in the event of a short circuit, and an onboard on/off switch so that it can remain connected when not in use without draining the batteries.
Note: Limited stock available as this item has been discontinued.

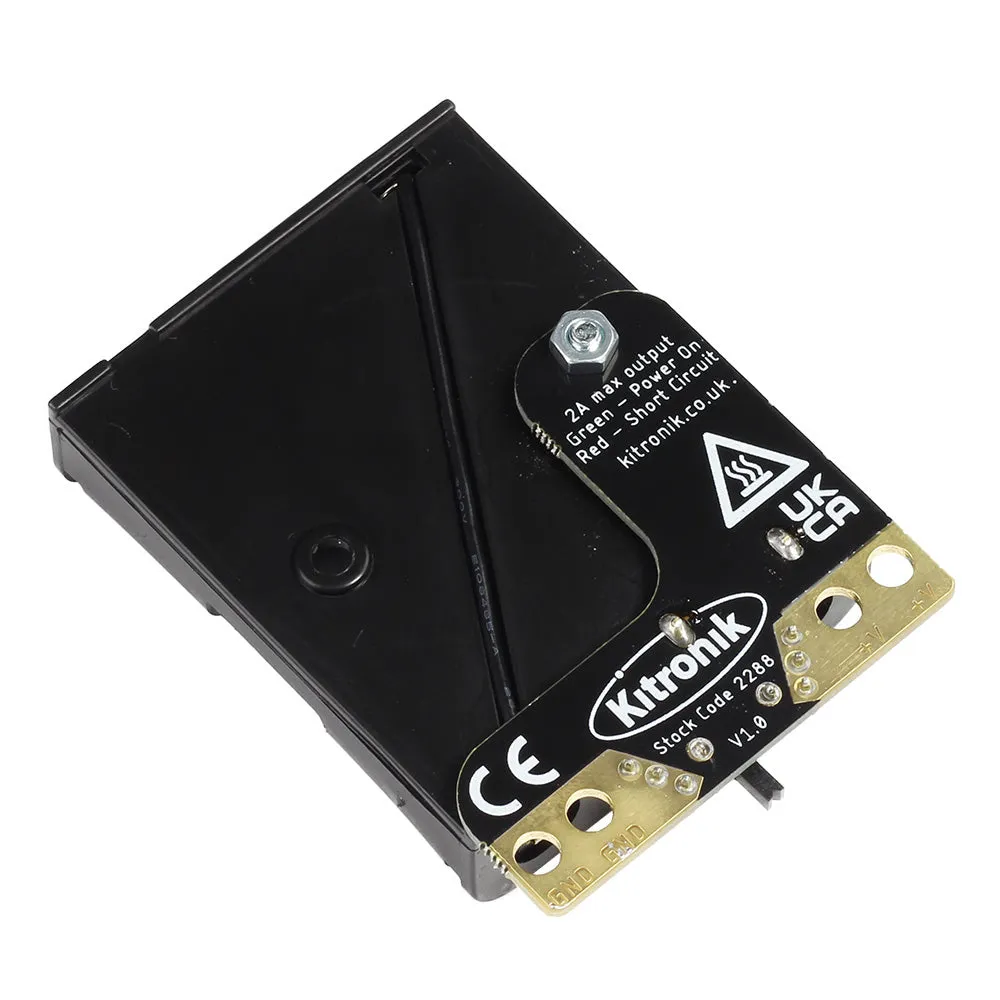

The onboard colour power indicator LED glows green when the pack is switched on and changes to red if a short circuit has tripped the fuse. You can easily see at a glance, if the board is off, on or if there is a problem.

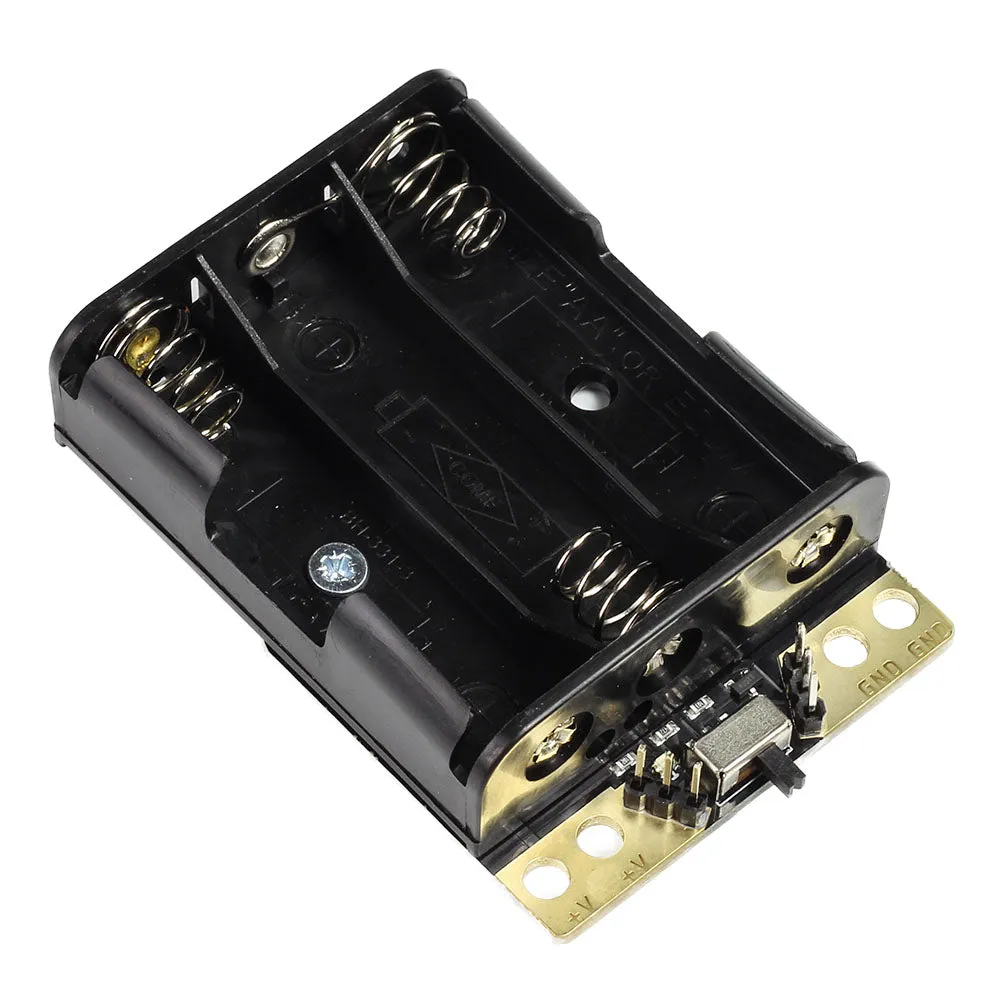

The protected battery box can connect your project with crocodile clips to the croc clip-friendly pads. Alternatively, you can use jumper wires to connect to the included pin headers.

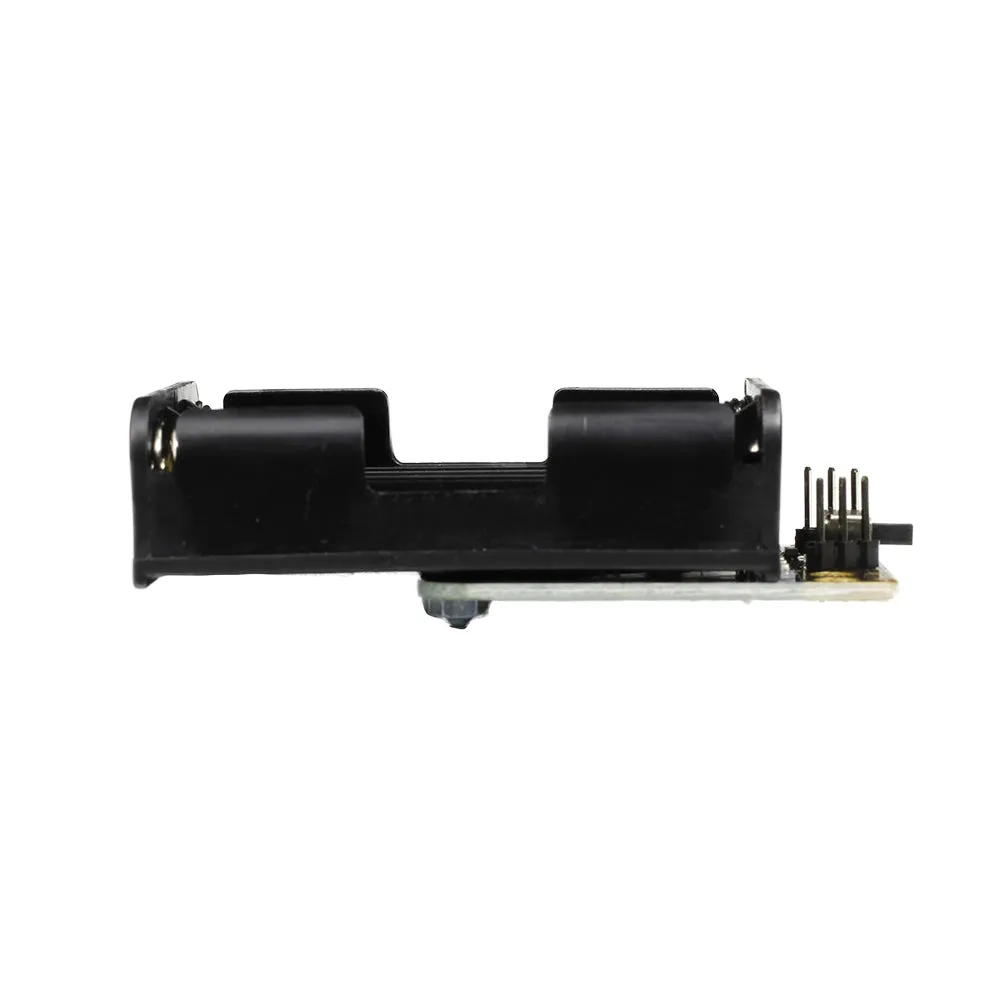

The battery pack provides a nominal 4.5V with a maximum current output of 2A and measures approx. 58mm x 48mm x 20mm (L, W, H). The portion of the PCB that protrudes past the battery holder is 48mm wide and 10mm long and contains the croc friendly pads, power/short circuit indicator LED, and the on/off switch.
Features:
- This protected battery provides 4.5V from 3 x AA batteries.
- The pack features self-resetting short circuit protection.
- The onboard on/off switch allows you to leave everything connected without draining the inserted batteries.
- The power/short circuit indicator LED lights up green when switched on and turns red when the fuse is tripped.
- Connect the pack to your project with crocodile clips to the croc clip-friendly pads. Alternatively, you can use jumper wires to connect to the included pin headers.
Contents:
- 1 x Kitronik 3 x AA Protected battery pack.
Dimensions:
- Length: 58mm.
- Width: 48mm.
- Height: 20mm.
Requires:
- Either jumper wires ( / ), or .
